dust control mist fog machine,0.5L mist cooling system,fog humidify system,high pressure mist pump,water fog pump-in Sprayers from Home & Garden

Scroll to product details, material & care and sizing

$ 580.00

Add to cart Add to wishlist

Term:
30dcb, pump spray, brass mist nozzle, Wholesale pump smoke, Wholesale mist pump sprayer, Wholesale sprayer, Wholesale brass mist nozzle, Wholesale cleaner system, Wholesale pump for fog, Wholesale white tshirt with bow, Wholesale mist pump,

dust control mist fog machine,0.5L mist cooling system,fog humidify system,high pressure mist pump,water fog pump Details & Specification :

Item Specifications
Type Sprayers
Model Number Fog Machine
Metal Type Stainless Steel
Material Metal
Brand Name idg
Sprayer Type Pump



Packing list(0.5L/Whole Set):

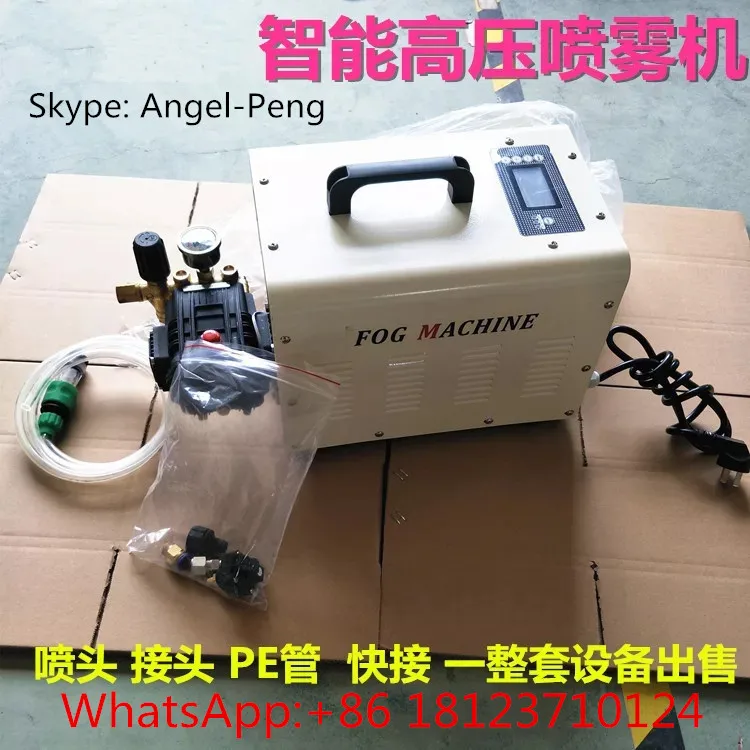

1,0.5L/PM High Pressure Fog Machine                              1pcs

2,High pressure Nylon pipe(good quality)                            20m

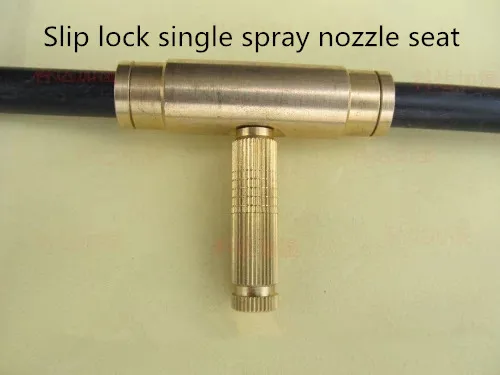

3,Slip lock single spray nozzle seat                                       14pcs

4,Slip lock end plug                                                                 1pcs

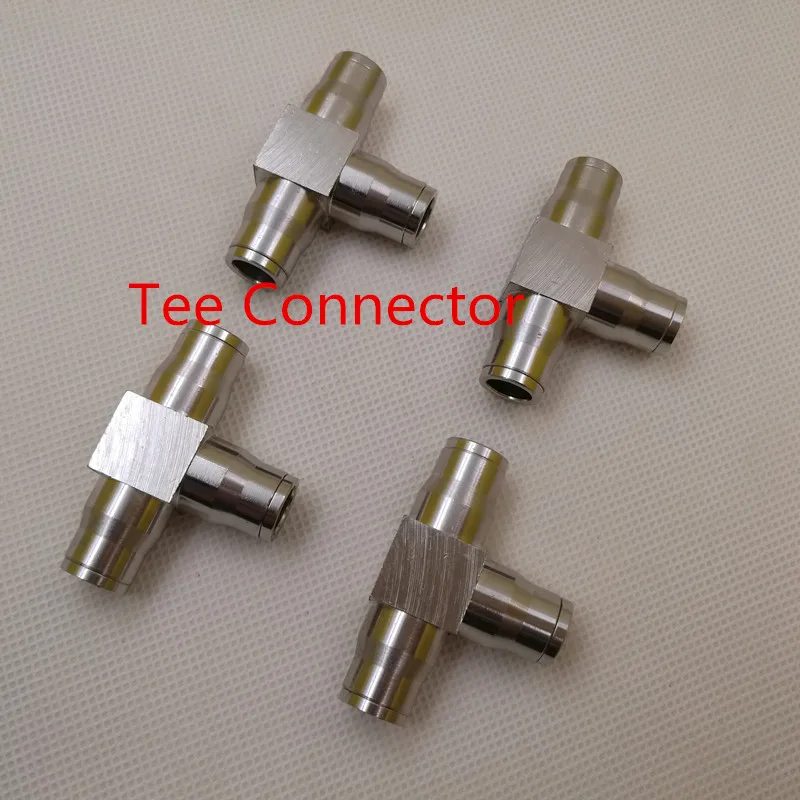

5,Tee Connector                                                                       2pcs

6,Fog nozzle                                                                             15pcs

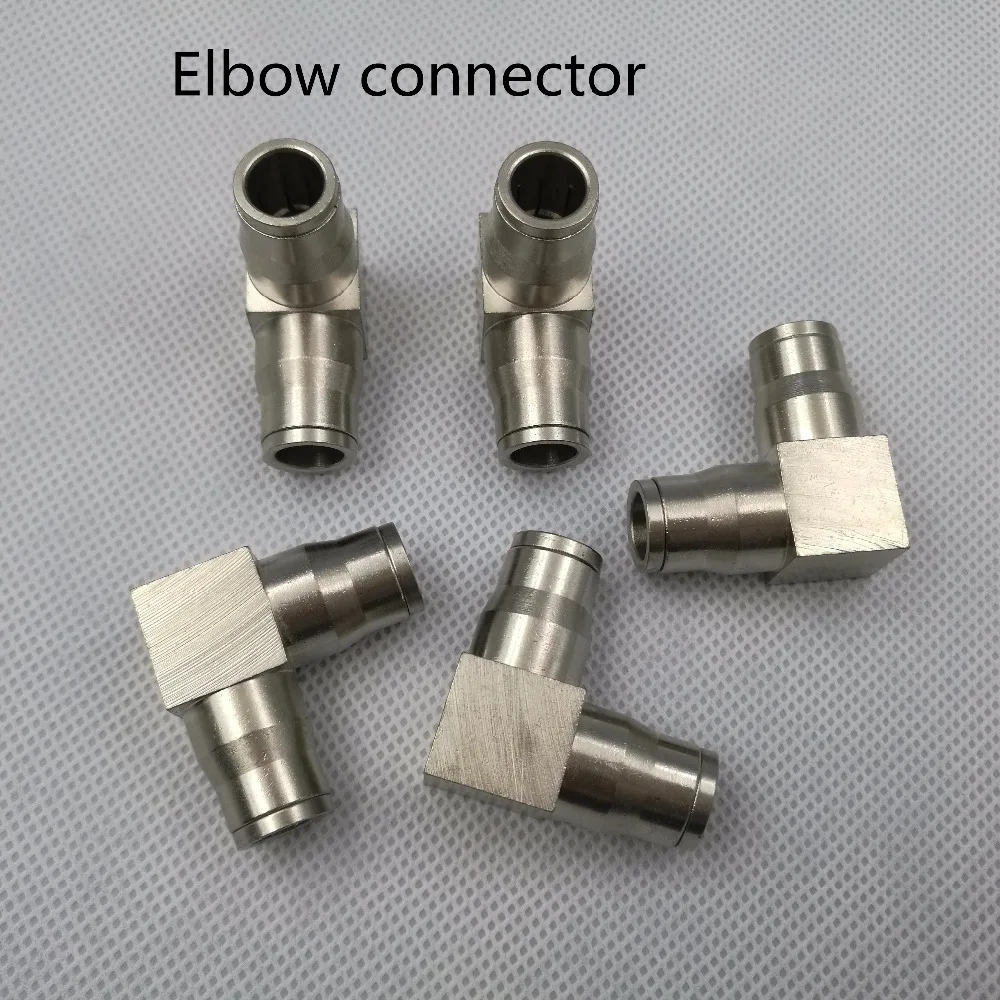

7,Elbow connector                                                                   2pcs

8, Tubing clamps                                                                     10pcs

9,Valve Connecting mainframe                                              1pcs

19, Valve switch                                                                       1pcs

11,With filter

12,With timer

02





      _W23LXRX(~QR[J`%J@3ZN35~4K(FNY]6%Q4ZZ[O`@NPXAA

02

01



3DA7C18746A1F9085DF1B30A7B625F82

IMG_20170625_134846

-2110975080__

IMG_20171121_232338_

IMG_20171121_232840_

IMG_20171110_232327

IMG_20171121_233558_

IMG_20170625_140925_

5CFAF6729BA16F974FDDA233966E5A50_

IMG_20171226_213140_

476647938__

B89E3019F649BC8DCDED4A0143196253_7EEB4D3DD93BABCA7B98CCB57C81E4D8_

Designing high pressure fog misting systems for your project can be confusing. With over 10 years in the industry, we have the expertise to simplify the process. Whether for cooling, humidification, greenhouse propagation, or dust/odor control, we can help define the products and the placement of the system to provide maximum performance.



Our product range includes stainless steel fog lines, a proprietary line of cooling and humidification misting fans, specialized humidity and temperature controllers, and both standard and cleanable fog nozzles.



Our product range also includes standard and custom pump designs. The pump selection provides an extensive list of custom pump additions including variable frequency drive, 1 phase or 3 phase voltages, multiple zones, remote control capability, and integration with existing controllers and low voltage signaling.



High Pressure Fine Misting System, Cooling Misting System for Chicken House.

  1. Nozzle Material: Brass, SS

  2. Orifice:Ruby,Ceramic,SS

  3.Connection Type: Quick Slip Lock, Thread type

  3.Tube size: 3/8" (9.52mm)

  3. Working Pressue: 9bar to 100bar (100PSI to 1000PSI)

  4. Droplet size: 5-40 Micron

  5. Motor Model: 220V/50HZ, 220V/60HZ, 380/50HZ

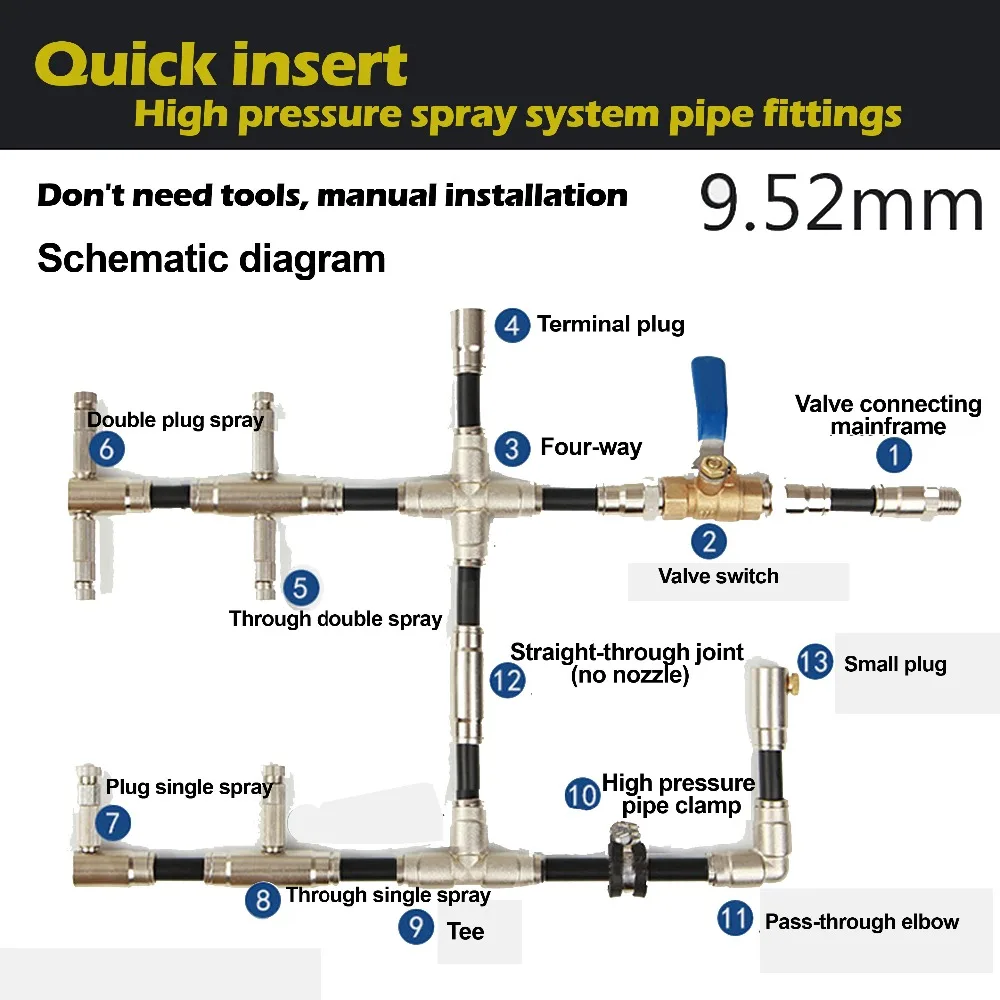

  6. Fittings Models: Nozzle, Nozzle connector, Tubing, Tubing Cutter, Water filter, Tee, Elbow, End, End Plug, Union, Male/female adapter, ball valve and water filter, etc.



 Huajue  Spray Professional make high quality misting system kits for cooling and misting, DIY mist cooling system simple for any applications.

We also separately supply the Fog misting nozzle, connectors, coupling, tubing and pumps.

1. Fog Misting Nozzle:

    Orifice diameter: 0.1mm up to 0.5mm

    Working pressure: 60-80 bar

    Body material: 304SS, brass and 316ss

    orifice material: SS, ceramic and ruby

    Inlet thread: 10/24, 12/24, 3/16 and 1/8



2. 3/8 Connectors,Fittings and Couplings:

    Material: brass and SS

    Nozzle thread: 10/24,12/24UNC

    Tubing Size: 3/8" (9.52mm)

     Working Pressure: 70bar/1000PSI



3. Nylon Tubing & PE Tubing:

    Outside diameter: 3/8"

    Working Presure: 70 bar up to 120 bar

    Temperature:40C.degree

4.Technical data sheet for Fog Nozzles:

Fog nozzle cooling greenhouse mist cooling system

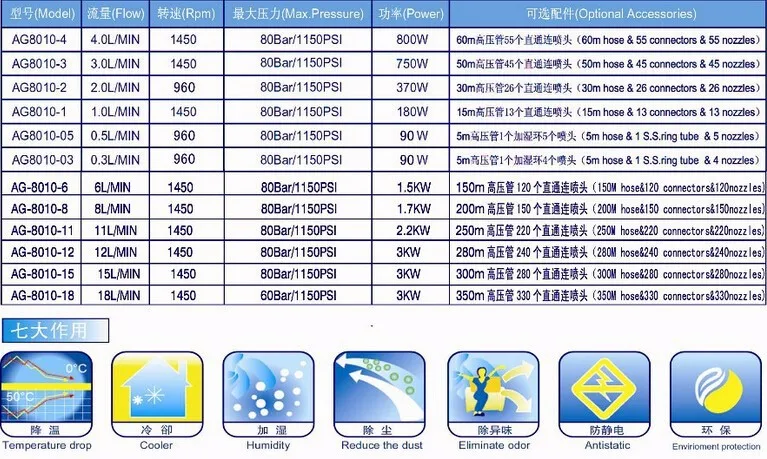

5. Misting Pump Capacity:

    0.3LPM,0.5L, 1LPM, 2LPM,3LPM, 4L, 5LPM,6LPM,7LPM,8L,11LPM,12LPM,15.4LPM,17LPM,18LPM,21LPM,25LPM



6. Pump Specification:

Products SeriesHigh Pressure - HJ Pump

Item NO. HJ8010-0.5-FGS10 Outdoor cooling fine fogging system

Introduction

healthier environmental quality! indoor & outdoor cool

finest water droplet !

simple installation & easy user-interface and maintance!!

more compact !!!


Specifications:

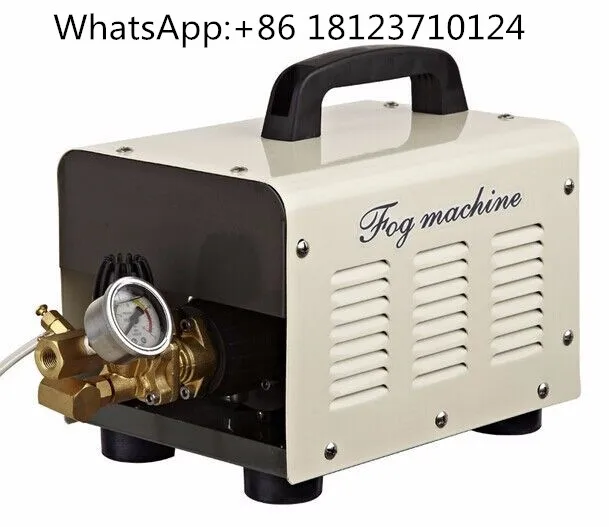

Pump No. : HJ8010-0.5

Pump : Plunger

Flow rate: 0.5L/min

Pressure: 80bar

Power: 130w

Rpm: 1450rpm

220 Volt - 50 / 60 HZ



Application

This pump can be applied into farming usage,such as cooling,humidification,dedusting,deodorization,insect control etc. It can be operated easily and simplely. with such kind of pump machine, user can save lots of energy and time to manage their farming place .Beside, the pump can be used for other functions mentioned flike follows:

 1. Cooling

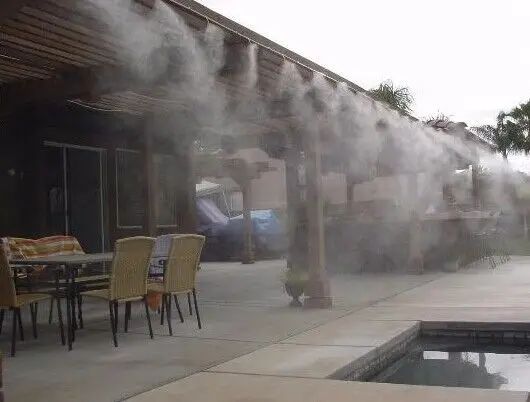

 Residential cooling, outdoor cooling, commercial place cooling

2. Humidification

Industrial, agricultural and horticultural: green house, garden, livestock farming

3. Dedusting and Deodorization



Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process



4. Insect Control

garden or agriculture , kill the insect effenciently.
